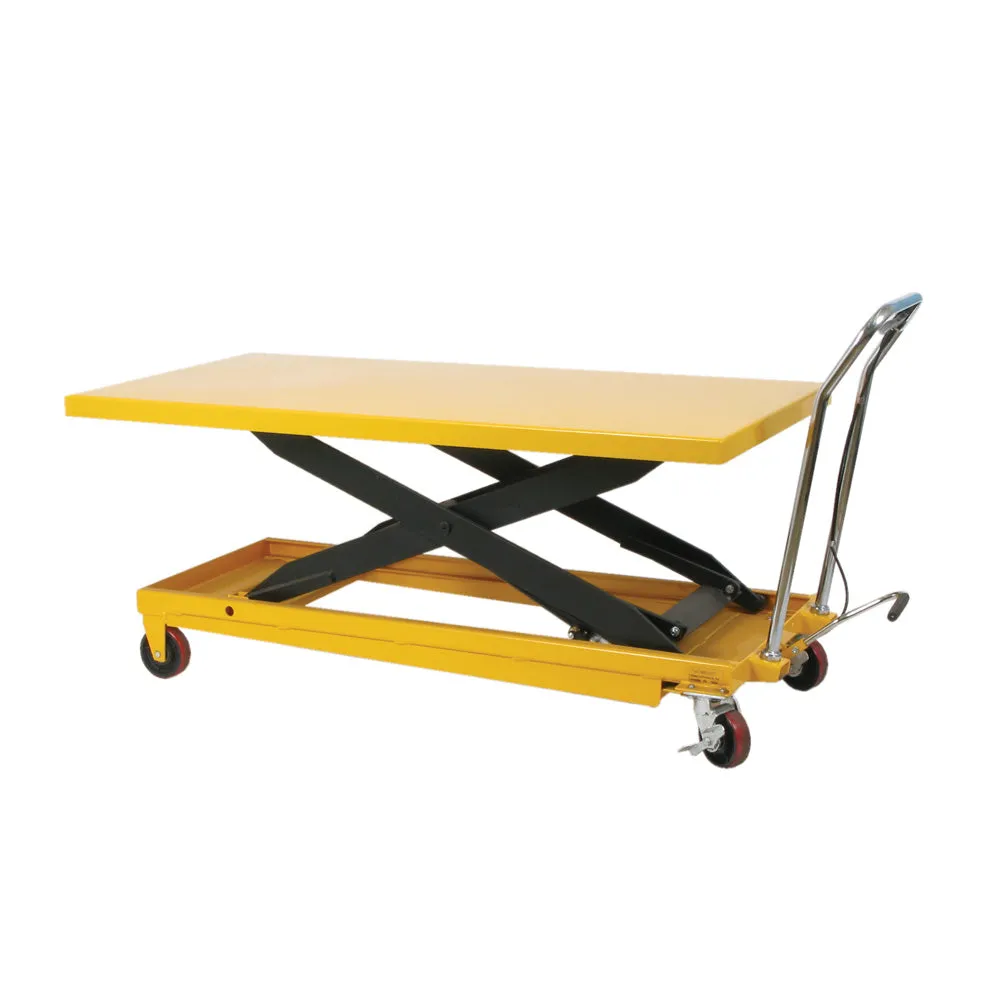

Long Deck Scissors Table, Various Capacities and Sizes
The Long Deck Scissors Table series offers versatile and robust material handling solutions with capacities of 1100 lb and 2200 lb. These tables feature oversized tabletops to accommodate large cargo, with hydraulic foot pumps and manually operated safety bars to lock the tables in the raised position. The tables come with different specifications to meet various needs.
The 1100 lb capacity model, LDT-3263, has a table size of 32" x 63", while the 2200 lb capacity model, LDT-3080, features a table size of 30" x 80". Both models are equipped with mold-on polyurethane casters for smooth movement and stability.
Specifications
| Specification | Part Number: 273261 | Part Number: 273230 |
|---|---|---|
| Model | LDT-3263 | LDT-3080 |
| Capacity | 1100 lb | 2200 lb |
| Caster | (2) 5" x 1.5" Moldon Polyurethane Rigid | (2) 7" x 2" |
| Caster with Lock | (2) 5" x 1.5" Moldon Polyurethane Swivel | (2) Nylon 3" x 1.5" Swivel |
| Table Width | 32" | 30" |
| Table Length | 63" | 80" |
| Handle Height | 38" | 39" |
| Raised Height | 36" | 53.5" |
| Lowered Height | 11.25" | 14.2" |
| Table Size | 32" x 63" | 30" x 80" |
| Lift Height | 36" | 53.5" |
| Overall Depth | 74.25" | 80.125" |
| Weight | 340 lb | 440 lb |
